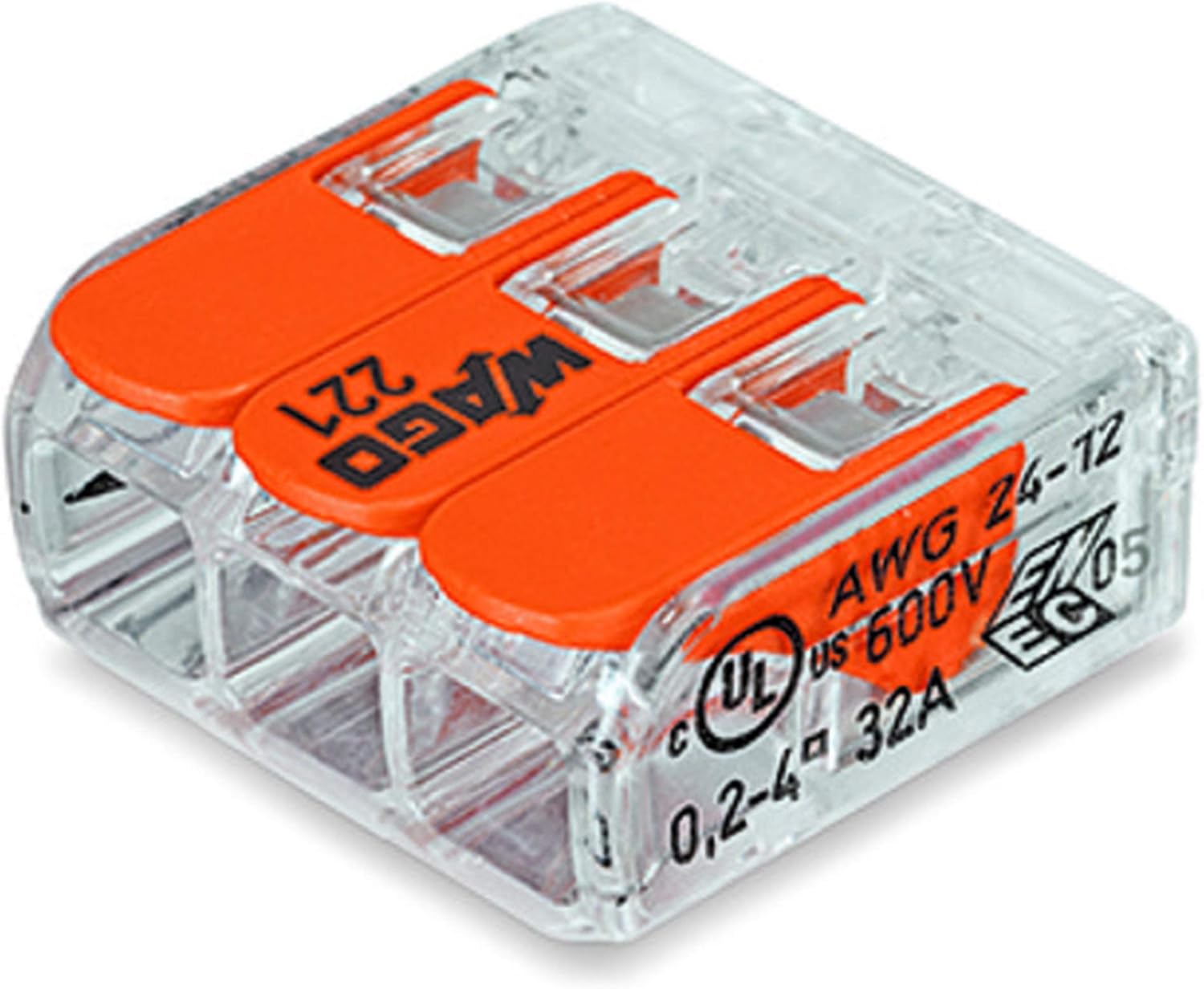

WAGO Quick Cable Connector 221-413 50PK Compact Wire Connector with Lever for Switch Box and Lighting Fixture
4.9 (124 items)
Limited Time SaleUS$19.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216483820 | Release Date | 2026/04/19 | List Price | US$13.20 | Model Number | 216483820 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product details:Ordering model: 221-413Minimum packaging quantity: 50 PCSElectrical parametersRatings per IEC/EN 60664-1Rated electrical parameters: EN 60664Rated voltage (II / 2): 450 VRated impulse voltage (II / 2): 4 kVRated current: 32 AApprovals per UL 1059Approvals per: UL 486 CRated voltage UL (Use Group C): 600 VRated current UL (Use Group C): 20 AWiring parametersConnection technology: CAGE CLAMPExecution type: operating handleConnectable wire material: copperRated conductor cross-sectional area: 4 mm²Single wire: 0.2… 4 mm² / 24… 12 A W GStranded wire: 0.2… 4 mm² / 24… 12 A W GThin stranded wire: 0.14… 4 mm² / 24… 12 A W GStripping length: 11 mm / 0.43 inchGeometrical DataWidth: 18.7 mm / 0.736 inchHeight: 8.3 mm / 0.327 inchHeight: 18.6 mm / 0.732 inchMaterial parametersColor: transparentUL 94 flame retardant rating: V 2Actuator color: orangeWeight: 2.5 gEnvironmental RequirementsWorking environment temperature (during operation): 85 °CContinuous operating temperature: 105 °C
| UPC | 681510650093 |
|---|---|
| Color | transparent |
| Model | 221-413 |
| Pitch | 18.7 Millimeters |
| Brand Name | WAGO |
| Manufacturer | WAGO |
| Material Type | Copper |
| Mounting Type | Free Hanging |
| Connector Type | Clamp |
| Current Rating | 20 Amps, 32 Amps |
| Number Of Poles | 3 |
| Centerline Length | 18.7 Millimeters |
| Specification Met | UL |
| Temperature Range | 105 Degrees Celsius |
| Number Of Contacts | 3 |
| Number of Positions | 3 |
| Item Dimensions W x H | 0.74"W x 0.73"H |
| Upper Temperature Rating | 105 Degrees Celsius |
